Product Description:
The 9-10.19 series centrifugal fan can output high gas pressure, suitable for conveying normal or high temperature clean gas/combustible gas/corrosive gas/mixed with a few impurities, light particles/debris/short fiber materials.
The most commonly used for forced ventilation, rapid drying, rapid cooling and heat dissipation, cement production line chiller cooling, clinker cooler, circulating fluidized bed system, air purification and industrial waste gas treatment, flue gas desulfurization industrial boilers or incinerators forced draft/ induced draft/ primary/ secondary air, ventilation of large mill system, industrial waste heat recovery device, blasting of smelting furnace and casting furnace, combustion of blast furnace, coal injection of blast furnace, pressurized transportation of gas, Pressurization or decompression sealing of industrial equipment.
The 9-08/9-10 series fan is a series of fans that are used in a large number of industrial fields.

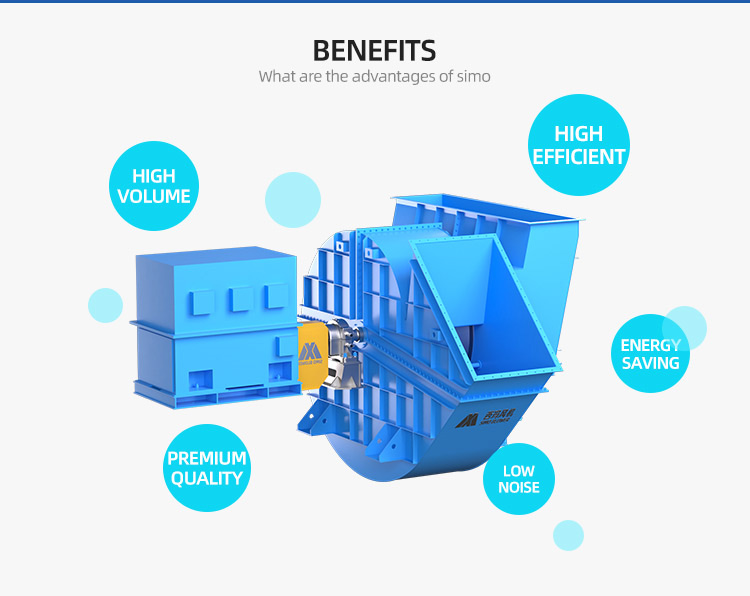

Features:
1. It can output very high pressure and can work at higher medium temperature, suitable for any industrial occasion where high pressure & high temperature gas needs to be delivered.
2. In the case of using the common base , the installation is very simple and basically does not require the support of professional technicians.
3. The bearing box is reserved with the temperature and vibration sensor installation position, which can conveniently install the fan operation monitoring device.
4. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.
5. Customized design according to customer performance requirements, and optimized by CFD technology, the energy consumption is lower than similar models.
6. The parts are closely matched and have good sealing performance to ensure the output pressure will not be reduced.
7. The impeller is calibrated by high standards for dynamic balance to ensure stable operation of the fan.
8. Running test and vibration value detection after the production is completed, the fan operation is reliable.
9. There are a variety of part options to choose from.
Technical Parameters:
| Series no. | 9-10.19 series | Feature selection |
| Normal | anti-corrosion | wear-resisting | High temperature | anti-explosion | Remarks |
| Performance | Impeller diameter | 250-2000mm | |
| Rotation speed | ≤4000rpm | |
| Pressure range | 348-15425Pa | |
| Flow range | 273-81858㎥/h | |
| Structure | Blade type | Forward | |
| Impeller support | SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung type | |
| Lubrication method | Oil bath lubrication, grease lubrication, lubrication oil station | Can be specified |
| Cooling method | Air cooling, Water cooling, Oil cooling | Can be specified |
| Driven mode | Direct driven, Coupling driven, Belt driven | Can be specified |
| Gas composition | Gas temperature | Normal | Customer request | Customer request | ≥250℃ | Customer request | |
| gas characteristic | Clean gas | Corrosive gas | Particulate dust | High temperature gas | Flammable gas, explosive gas | |
| System configuration | Motor brand | Chinese famous brand, ABB, Siemens, WEG etc | Can be specified |
| Impeller | High quality carbon steel | FRP, Stainless steel, Rubber Lining | Wear-resistant layer or wear-resistant liner, ceramic patch | High temperature high quality alloy steel | FRP, Aluminum alloy | Can be specified |
| Air inlet cone | High quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel | Can be specified |
| Casing | High quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel | Can be specified |
| Air damper | High quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel | Can be specified |
| Main shaft | High strength carbon steel, Alloy structural steel | Can be specified |
| Bearing | ZWZ, SKF, FAG, NSK | Can be specified |
| Bearing housing | Cast iron | |
| Foundation bolts | GB799-1988 | |
| Option parts | System base frame, Protective screening, Silencer, Inlet & Outlet flexible connections, Inlet & Outlet counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument. |
Applications:
Production process:
Why choose us:
About us:
Packing and Shipping:
FAQ:
