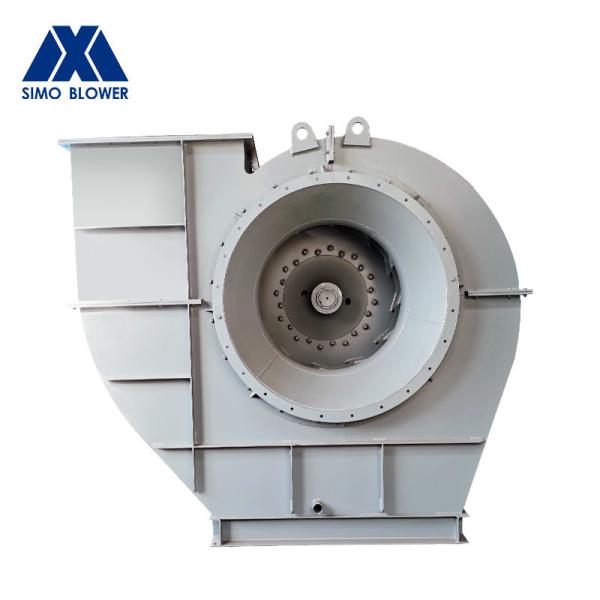

Coal Fired Primary Boiler Centrifugal Fan Induced Draft

Name: Coal Fired Primary Boiler Centrifugal Fan Induced Draft
Brand: SIMO BLOWER
Price: 8000 USD

Buy cheap Coal Fired Primary Boiler Centrifugal Fan Induced Draft product

Brand Name : SIMO BLOWER

Model Number : SIMO Blower 8-12

Certification : CE

Place of Origin : China

MOQ : 1

Price : 8000

Air Volume : 97000m³/h

Application : Boiler

Material : Stainless Steel

Noise : ≤85dB

Power : 75KW

Pressure : 2900Pa

Product Name : Boiler Fan

Size : Customized

Speed : 1400rpm

Temperature : ≤120℃

Type : Centrifugal Fan

Voltage : 220V

Warranty : 1 Year

Weight : 50kg

Contact Now

Product Description:

The primary function of centrifugal fan in a boiler is the suction or creating negative pressure to dispense the flue gases or air from the system.
Induced Draft Fans or ID Fans removes flue gases from the combustion chambers and creates a vacuum of negative air pressure with a blower to suck the air out of the combustion chamber. These air or flue gases are discharged from the boiler through a stack or chimney.

Features:

Product Name: Boiler Centrifugal Fan
Noise Level: Low
Color: Custom
Rotation Speed: 2744~15000
Material: Stainless Steel 201,304,316,316L
Maintenance: Low
Specialized in dust collector system Fan
Cement Plant Fan

series	model	Rotation Speed (r/min)	Total Pressure (Pa)	Air Capacity (m³/h)	Power (kW)
8-12	4D	2900	1942～2108	3242～6869	5.5～7.5
	4.5D	2900	2462～2805	4616～9781	7.5～11
	5D	2900	3030～3375	6333～13417	15～22
	5.6D	2900	3805～4227	8897～18847	30～37
	6.3D	1450	1206～1373	6334～13419	5.5～7.5
	7.1D	1450	1530～1746	9066～19208	11～15
	8D	1450	1942～2216	12969～25059	18.5～30
	9D	1450	2462～2805	18466～39122	37～45
	10D	1450	3030～3462	25330～53666	55～75
	11.2D	960～1450	1667～4345	23561～75397	45～132
	12.5D	730～960	1206～2305	24907～69396	22～75
	14D	730～960	1510～2972	34993～97496	37～132
	16D	730～960	1971～3884	52234～145533	75～250

Technical Parameters:

Parameters	Details
Noise Level	Low
Size	Large
Color	Custom
Power	High
Weight	Heavy
Total pressure	2744~12409
Main function	cement plant
Feature	High Efficiency
Speed	High
Maintenance	Low
centrifugal fan in boiler	Yes
centrifugal fan in boiler	Yes
centrifugal fan in boiler	Yes
centrifugal fan in boiler	Yes
centrifugal fan in boiler	Yes

Applications:

Industrial boilers are one of the most popular application fields of SIMO BLOWER products. SIMO BLOWER can provide a complete set of fan products, which can meet the performance requirements of industrial boiler systems such as 1~450T coal-fired boilers, biomass boilers, and waste incineration boilers.

SIMO BLOWER can be used by industrial boiler fan users: coal-fired boiler fans, biomass fuel boiler fans, waste incineration boiler fans, industrial boiler induced draft fans (FD fans), induced draft fans (ID fans), primary fans (PA fan), secondary fan (SA fan), and flue gas dedusting fan, flue gas desulfurization fan (FGD fan), flue gas denitrification fan, etc.

FAQ:

Q1: What is the Brand Name of this product?: A1: The Brand Name of this product is SIMOBLOWER.
Q2: What is the Model Number of this product?: A2: The Model Number of this product is cantrifugal fan.
Q3: Where is this product from?: A3: This product is from China.
Q4: Does this product have CE certification?: A4: Yes, this product has CE certification.
Q5: What is the minimum order quantity of this product?: A5: The minimum order quantity of this product is 1.
