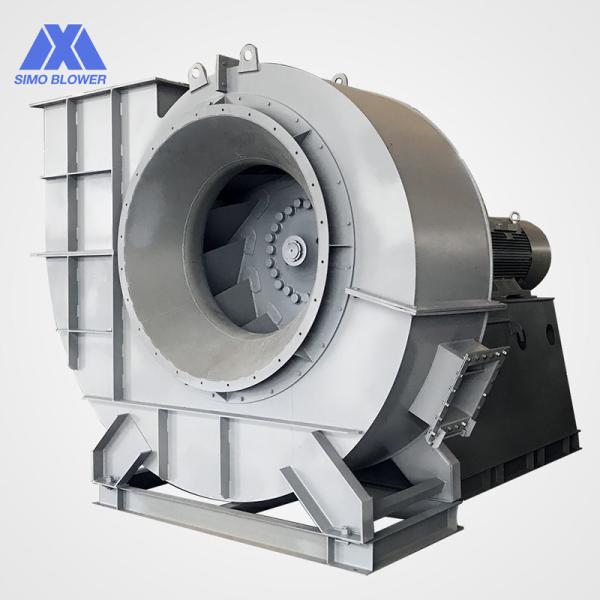

Efficient Energy-Saving Coupling Driving Coal Mill Stainless Steel Blower
Introduction Of Centrifugal Fan
The 5-12 series centrifugal fan is an enhanced version of the 5-11 series medium pressure centrifugal fan.
This series of fans can also be used for dust removal, mine ventilation and general ventilation systems. The blower delivers air, and the induced draft fan delivers flue gas or gas containing foreign particles.
The performance of the fan is expressed by parameters such as fan flow, full pressure, spindle speed, shaft power and efficiency.
Technical data
| series | model | Rotation Speed
(r/min) | Total Pressure
(Pa) | Air Capacity
(m³/h) | Power
(kW) |
| 5-12 | 4D | 2500～3550 | 742～2221 | 2065～5564 | 2.2～5.5 |
| 5D | 2240～3150 | 964～2819 | 3772～9851 | 4～11 |
| 6.3D | 2000～2800 | 1221～3545 | 6737～17516 | 7.5～22 |
| 8D | 1400～2000 | 1100～3323 | 9656～25619 | 11～30 |
| 10D | 1250～1800 | 1419～4483 | 15451～44634 | 22～75 |
| 12.5D | 1000～1400 | 2145～4234 | 24143～67803 | 37～110 |
Product Features
The bearing housing is equipped with a thermometer and an oil level indicator (only the induced draft fan). The lubricating oil uses 46# mechanical oil, and the oil quantity is implemented according to the oil level mark. When the No8-16 integral cylindrical bearing housing uses dry oil, the oil retaining plate should be added to the ball side of the bearing housing, and the fixing grooves communicate with each other. The induced draft fan is equipped with a water cooling device, so a water supply pipe must be installed. Water consumption varies with temperature, and is generally considered to be 0.5 to 1 m3/h.
The main shaft of the transmission part is made of high-quality steel, and the 5-51 series of fans are all made of roller bearings.
FAQ
1,Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2,Q: How long is the delivery time?
A : A:5-35 days.
3,Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
